Kit intégration calandre Ranger Raptor 2023 LAZER Triple-R16 Elite

Ranger Raptor 2023 LAZER Triple-R16 Elite grille integration kit

Lazer (barres de leds)
GK-RAP-ELITE-03K
€966.00
Tax included

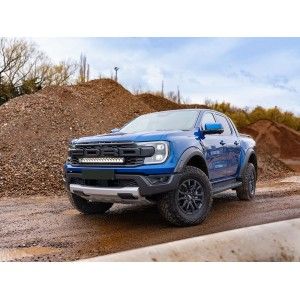

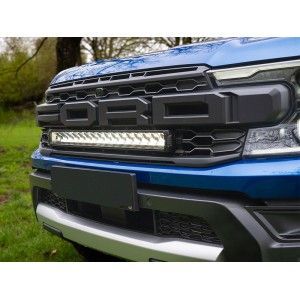

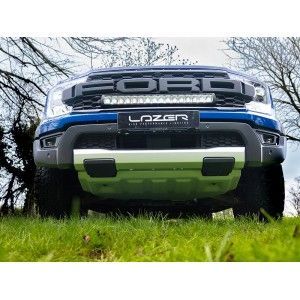

Specific kit for Ford Ranger Raptor 2023+ to integrate 1 Lazer Triple-R16 Elite LED bar in the grille.

Quantity

Specific kit for Ford Ranger Raptor 2023+ to integrate 1 Lazer Triple-R16 Elite LED bar in the grille

Suitable for Ford Ranger Raptor (2023+)

Available with : Triple-R 16 Elite high-performance LED headlamps.

Class B main-beam headlamps conforming to UNECE Regulation No. 112 for main-beam function on the road.

Installation in the vehicle's original grille, carried out in-situ on the vehicle.

Cutting guides supplied for easy installation.

Mounting brackets are 3D printed from ultra-strong, UV-stabilized automotive-grade composite material.

Supplied with matching Lazer vehicle wiring kit.

Mounting recommendations included.

5-year warranty.

Designed and manufactured in the UK.

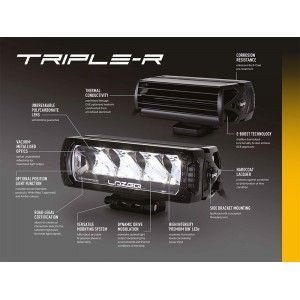

1x Triple-R 16 Elite

Voltage range (DC)

10-32V
LED lifetime50,000 hrs
Weight3.2 kg
HIGH BEAM FUNCTION
Total luminous flux

18040 Lm

Total driver field of view flux †11888 Lm
Color temperature5000k
Number of high-intensity LEDs16
Power consumption208 W
Current consumption (at 14.4 V)14.4 A

CERTIFICATION
High beamN/A
UNECE reference (United Nations Economic Commission for Europe)N/A

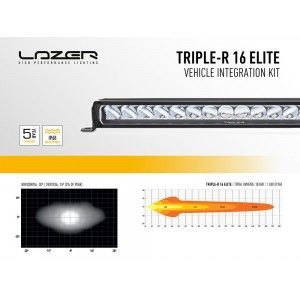

PHOTOMETRIC DATA
Horizontal beam angle30 Deg
0.25 lx1920 m
0.5 lx1358 m
1 lx960 m
3 lx554 m

† Driver field-of-view (FOV) flux measures effective lumens by taking into account the amount of light in a driver's "field of view" defined as an area of +/- 45o from left to right, and +/- 10o from bottom to top.

KIT INCLUDES :

  • 1x LED lighting (Triple-R 16 Elite)

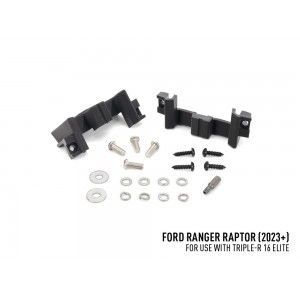

  • 1x Grille support kit
  • 1x Single-lamp wiring kit
  • 1x Installation instructions

GK-RAP-ELITE-03K

Data sheet

Brand
Lazer

Specific References
