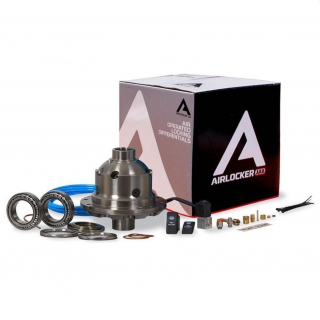

ARB RD132 Locker

Air Locker ARB.

Differential with pneumatic locking system.

Reliable and sturdy, it's been the benchmark in locking technology for 35 years.

Supplied with connections and hoses, but without compressor.

For vehicles without original differential locks.

Front-mounted for : Series 7 after 1999, Series 7 with LJ70 LJ73 KZJ70 KZJ73 coil springs etc. (requires special bearings), Hilux with rigid axles (requires special bearings), Series 80 and HZJ105.

Rear-mounted for : Series 7 with coil springs (LJ70 <1985 requires specific bearing kit), Series 9, Series 12, Series 15, Hilux, Runner and FJ Cruiser.

Differential size: 8 inches.

Number of bolts holding large ring gear: 10.

Number of shaft splines: 30.

Wheel shaft Ø33mm.

For models with rigid axle.

Fits on :

Toyota Land Cruiser 7# series - springs / leaves FZJ71 4,5i es (1999 -> 2009) 1FZ-FE
Toyota Land Cruiser 7# series - springs/leaves FZJ74 4,5i es (1999 -> 2009) 1FZ-FE
Toyota Land Cruiser 7# series - springs/leaves FZJ76 4,5i es (1999 -> 2009) 1FZ-FE
Toyota Land Cruiser 7# series - springs/leaves FZJ78 4,5i es (1999 -> 2009) 1FZ-FE
Toyota Land Cruiser 7# series - springs/leaves FZJ79 4,5i es (1999 -> 2009) 1FZ-FE
Toyota Land Cruiser 7# series - springs/leaves GRJ71 4.0i V6 es (2009 -> today) 1GR-FE
Toyota Land Cruiser 7# series - springs/leaves GRJ76 4.0i V6 es (2009 -> today) 1GR-FE

Toyota Land Cruiser 7# series - springs/leaves GRJ78 4.0i V6 es (2009 -> today) 1GR-FE
Toyota Land Cruiser 7# series - springs/leaves GRJ79 4.0i V6 es (2009 -> today) 1GR-FE
Toyota Land Cruiser 7# series - springs/leaves HDJ78 4,2TD (2001 -> 2007) 1HD-FTE
Toyota Land Cruiser 7# series - springs/leaves HDJ79 4,2TD (2001 -> 2007) 1HD-FTE
Toyota Land Cruiser 7# series - springs/leaves HZJ71 4.2 D (1999 -> 2007) 1HZ
Toyota Land Cruiser 7# series - springs/leaves HZJ74 4.2 D (1999 -> 2007) 1HZ
Toyota Land Cruiser 7# series - springs/leaves HZJ78 4.2 D (1999 -> 2007) 1HZ
Toyota Land Cruiser 7# series - springs/leaves HZJ79 4.2 D (1999 -> 2007) 1HZ
Toyota Land Cruiser 7# series - springs/leaves HZJ78 4.2 D (2007 -> today) 1HZ
Toyota Land Cruiser 7# series - springs/leaves HZJ79 4.2 D (2007 -> today) 1HZ
Toyota Land Cruiser 7# series - springs/leaves VDJ76 4.5 TD V8 (2009 -> today) 1VD-FTV
Toyota Land Cruiser 7# series - springs/leaves VDJ78 4,5 TD V8 (2009 -> today) 1VD-FTV
Toyota Land Cruiser 7# series - springs/leaves VDJ79 4,5 TD V8 (2009 -> today) 1VD-FTV
Toyota Land Cruiser 7# series - springs/leaves HZJ76 4.2 D (2007 -> today) 1HZ
Toyota Land Cruiser 10# series FZJ105 4,5i es (1993 -> 2005) 1FZ-FE
Toyota Land Cruiser 10 series# HZJ105 4.2 D (1998 -> 2007) 1HZ

Supplied without compressor.

Please specify the exact year and model of your vehicle when ordering.

Photo non contractuelle
