Serrure verrouillage pour cabine conducteur de: Fiat Ducato 2006-2021, Peugeot Boxer, Citroën Jumper 2006+

Pair of cabin safety locks for Fiat Ducato 2006-2021, Peugeot Boxer, Citroën Jumper 2006+.

HEOSafe
HEO12656
€159.00
Tax included

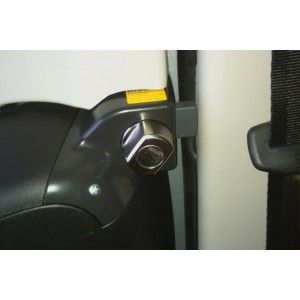

lockable button

Quantity

OPERATING INSTRUCTIONS

- Press the button. Now you can turn the knob: the door is closed or opened.
- The turning knob locks automatically as soon as the deadbolt is completely unscrewed or screwed in.
- Turning the key locks the position of the bolt: closed or open.

ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS A

Fiat Ducato 250, Peugeot Boxer, Citroën Jumper / 2006 - 2014

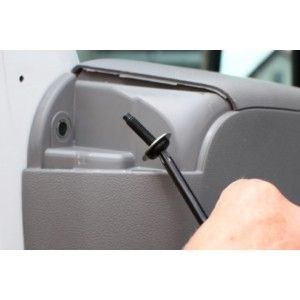

- Remove the armrest.

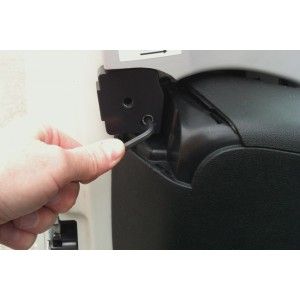

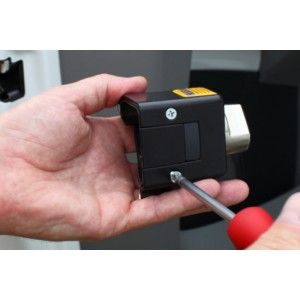

- Unscrew the screw with a TORX ® - Remove the base plate from the fitted lock. To prevent flying parts from getting lost, pull out the lock completely and compress the base plate on the other side with the lock by unscrewing the 2 screws.

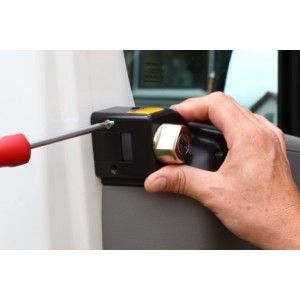

- Position the HEOSafe® lock base plate - Position the lock on the base plate and reattach it with the 2 screws. Make sure the guide pin with the large spring slides into the hole in the base plate.

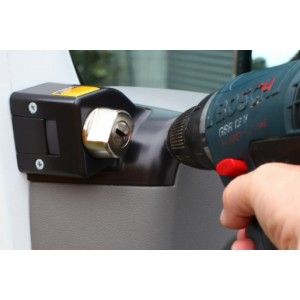

- Then position the lock (mounted on the plate) perfectly in the armrest and drill the pilot hole in the armrest using a 2 mm drill bit. - At the height of the lock, press the rubber gasket into the gap between the B column and the B column cover.

ASSEMBLY INSTRUCTIONS B

Fiat Ducato 250, Peugeot Boxer, Citroën Jumper / 2014 - ...

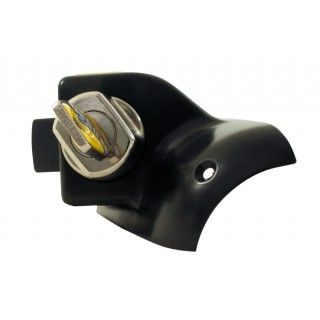

Assembly with add-on part for models built from 2014-...,

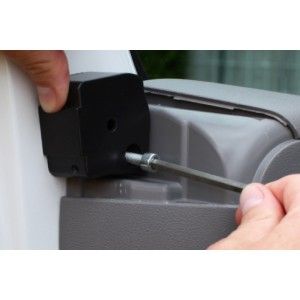

At latch height, push the rubber seal of column B between the edge protection and plastic covering. Insert the add-on and fasten it to the B-pillar cover with the screws. If, when closing the lock, the bolt cannot be fully extended (i.e. the lock cannot be closed), cut the inner contour of the part out of the rubber.
For a well-installed assembly, you can cut the rubber from the top and bottom of the part, up to the edge of the lining.
You can also use this part for the Fiat Ducato 250 (2006-2013). Here you cut the outer contour of the part from the rubber up to the edge of the lining
By cutting the inner contour (Fiat Ducato 250 / 290 2014-...) and outer contour (Fiat Ducato 250 2006-2013) you create a free space into which the bolt can engage more deeply. Existing stability is further enhanced.

ASSEMBLY INSTRUCTIONS C

Special installation of lock 12656 / 12646 in Fiat Ducato 250 / 290 with REMIS IV sun visor.

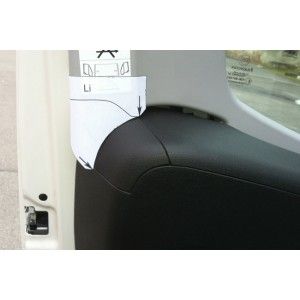

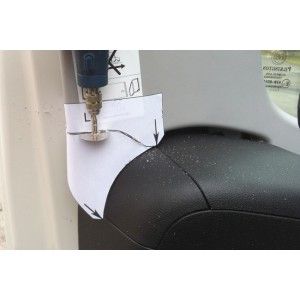

- Cutting template (right or left-hand version).

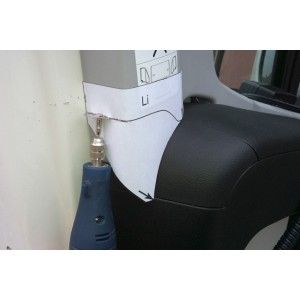

- Position the template on the REMIS IV frame. The two arrows must match the cracks in the armrest.
- Secure the template with a sticker. There must be a 90-degree angle between the top edge of the template and the frame.

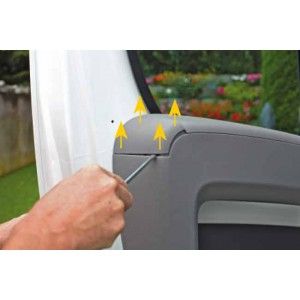

- Cut with a Dremel® - Now remove the armrest part (remove it with a flathead screwdriver) and continue with assembly as described in instructions A or B.

IMPORTANT ASSEMBLY INSTRUCTIONS

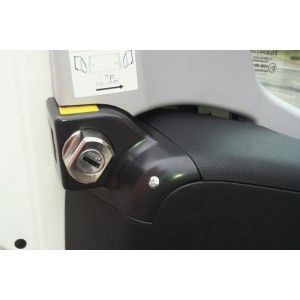

After assembly, close the door gently and make sure that the HEOSafe ® lock box is not damaged.
