Pair of cabin safety locks Mercedes Sprinter & Volkswagen Crafter 2006 - 2018

Assembly on door frame

1 pair of locks (1 x left / 1 x right) with 4 keys + Additional part (bolt stop column B)

Key-operated / Latch lock with cylinder lock

OPERATING INSTRUCTIONS :
- Pressing the knob closes or opens the door.
- The knob locks automatically as soon as the deadbolt is completely unscrewed or screwed in.
- Turning the key locks the bolt position: closed or open.

INSTALLATION INSTRUCTIONS :

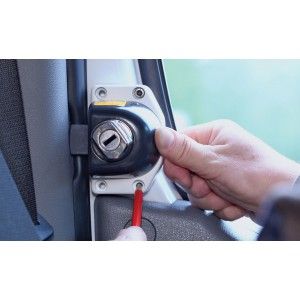

- Position the lock on the door frame. The distance between the lock case and column B should be approximately 3 mm.
- At latch height, push the rubber gasket between column B and the cabin lining.
- Position the lock so that the closed bolt pushes against the lining.
- Now you can mark the holes.
- Remove the lock and drill a pilot hole using a 3.2 mm bit.
- Secure the special tapping screws with a 4 mm Allen® key.

IMPORTANT ASSEMBLY INSTRUCTIONS :
After installation, close the door gently and make sure that the HEOSafe® lock box passes through the rubber seal without any problems.

Should you require any further information, please do not hesitate to contact us.
