Pair of cabin safety locks Renault Master & Opel Movano from 2000 to 2010 / Iveco Daily from 2000-2014

Door frame assembly

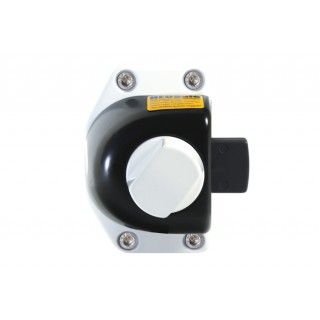

1 pair of locks (1 x left / 1 x right) + Additional part (bolt stop column B)

Locking bolt


OPERATING INSTRUCTIONS :
- Pressing the knob closes or opens the door.
- The knob locks automatically as soon as the deadbolt is completely unscrewed or screwed in.
- Turning the key locks the latch position: closed or open.

INSTALLATION INSTRUCTIONS :
- Position the lock on the door frame. The distance between the lock box and column B should be approximately 3 mm.

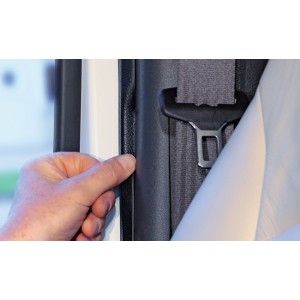

- At latch height, push the rubber gasket between column B and the cabin lining.
- Position the lock so that the closed bolt pushes against the lining.

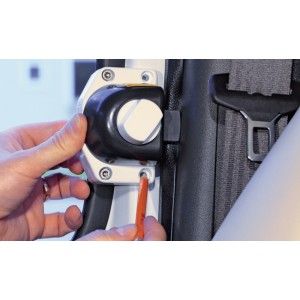

- Now you can mark the holes.

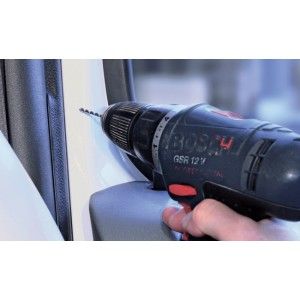

- Remove the lock and drill a pilot hole using a 3.2 mm bit.

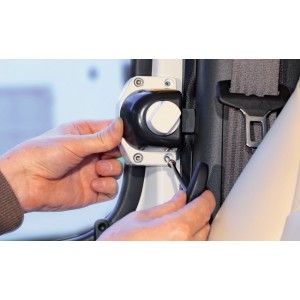

- Secure the special tapping screws with a 4 mm Allen® key.

IMPORTANT ASSEMBLY INSTRUCTIONS :

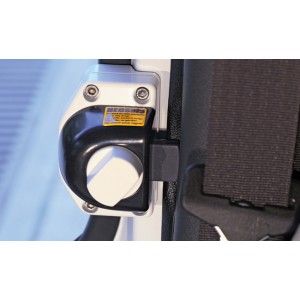

After installation, close the door gently and make sure that the HEOSafe® lock box passes through the rubber seal without any problems.

For further information, please do not hesitate to contact us:
