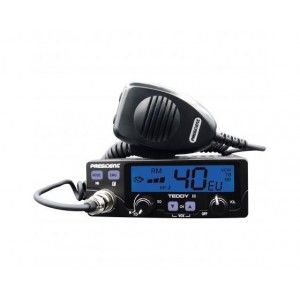

CB PRESIDENT TEDDY II

CB PRESIDENT TEDDY II

President (postes CB)
TXPR276
€143.00
Tax included

CB PRESIDENT TEDDY II with VOX (hands-free) function

Quantity

CB PRESIDENT TEDDY II with VOX (hands-free) function

- 40 AM / FM channels
- Up/down channel selector
- Volume and M/A control
- Manual squelch and ASC
- Large multifunction LCD display
- Level indicator
- Integrated ANL noise filter, NB
- VOX
- Function key F
- Switchable key beep
- AM / FM mode switch
- Programmable emergency channel preselection
- Front-panel microphone jack
- External speaker socket

Technical specifications :

General
Number of channels:40
Modulation modes:AM / FM
Frequency range:26.965 MHz to 27.405 MHz
Antenna impedance:50 ohms
Supply voltage:12 V
Dimensions:125 (W) x 151 (D) x 45(H)
Weight:0.9 kg
Accessories included:Ultra-light Electret microphone and stand
1 cradle
mounting screw
Filter:Integrated ANL (Automatic Noise Limiter)
Transmission
Frequency tolerance:+/- 200 Hz
Carrier power:4 W AM / 4 W FM
Spurious emissions:less than 4 nW (- 54 dBm)
Frequency response:300 Hz to 3 kHz
Power output in adj. channel:less than 20 μW
Microphone sensitivity:7 mV
Power consumption:1.7 A (with modulation)
Max. distortion of modulated signal:2 %
Reception
Maxi. sensitivity at 20 dB sinad:0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM
Frequency response:300 Hz to 3 kHz
Adjacent channel selectivity:60 dB
Maximum audio power:2.5 W
Squelch sensitivity:mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm
Image freq. rej. rate:60 dB
Intermediate frequency rejection ratio:70 dB
Power consumption:160 ~ 420 mA
TXPR276

Data sheet

Brand
President
