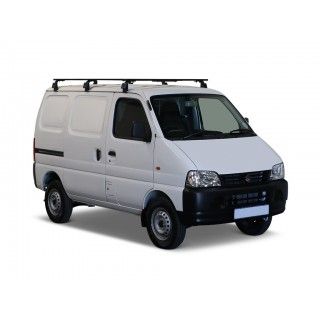

Suzuki Eeco (2023-Current) Triple Load Bar Kit

A set of gutter-mounted roof bars used to carry equipment on the roof of your Suzuki Eeco when a complete Front Runner roof rack is not required. This discreet, space-saving solution includes 6 x 130 mm gutter-mounted feet, 3 x 1255 mm roof bars, 1 x 10 mm roof bar wind deflector and mounting instructions - all the components needed to mount Front Runner roof bars on a vehicle fitted with gutters.

You may not need a complete roof rack, and can make do with a set of Front Runner roof bars.

They can be used to mount a Front Runner roof tent, or other accessories where a low profile and small footprint are desired.

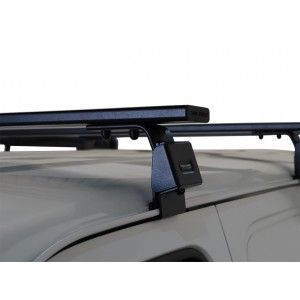

The roof bars are mounted directly on the gutters using gutter-mounted feet.

Uses the same corrosion-resistant aluminum slats as Front Runner's Slimline II roof racks.

T-slots in the sliding nuts allow accessories and equipment to be quickly fitted and removed at the top and bottom of the slats.

Roof bars and gutter mounting feet can be used in the future as components to build a complete Front Runner roof rack.

Made of stainless steel and aluminum with a durable, weather-resistant black powder coating.

Includes all hardware, components and installation guide needed to mount roof racks on a vehicle.

Note: Load limit and accessory compatibility are reduced with load bars. Please also check the maximum load capacity of your vehicle's roof.
KRSE001 -Triple roof rack kit for Suzuki Eeco (2023-until now)
Consisting of :
3x LASS102 - N° 2 Feet 130mm (Pair)
1x LASS121 - Universal soldering strip / 6 pieces

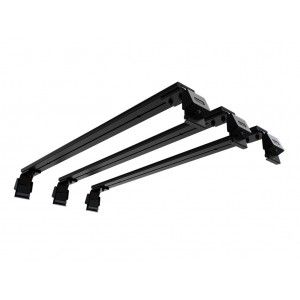

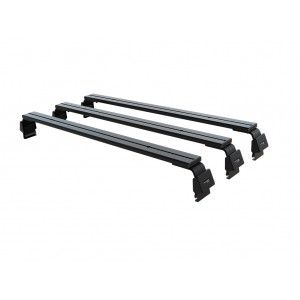

1x LBSK021 - Roof bar set 1255mm(l)
1x WDLB001 - Wind deflector for roof bar / 10mm
Material used :
Black epoxy powder-coated T6 aluminum
Approximate installed weight: 13.99kg (30.84lbs)
The T-slots at the top and bottom of the slats are compatible with standard 8mm bolts.
To determine the approximate height from the roof of your vehicle to the top of your roof bar kit, add the height of the roof bar (22mm/7/8") to the height of the foot, Grab-On foot or Strap-On foot shown above.
If your roof bar kit uses feet, add the height of the roof bar (22 mm/ 7/8'') to the height of the feet shown above to determine the height of the roof rack in relation to your vehicle's gutters.
Delivery dimensions:
Width: 125mm (5'')
Length: 1360mm (54")
Height: 245mm (10'')
Shipping weight :
Weight: 13kg (29lbs)
